Aluminium Gravity Die Casting Machines Easy To Disassemble With CNC Machining

Brand Name : DZ

Model Number : HZ-450

Certification : CE ISO

Place of Origin : China(Mainland)

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 sets/per month

Delivery Time : 2 weeks

Packaging Details : wood

Condition : New

Warranty : 1 Year

Technology : Die Casting Technology

Hydraulic Lube : 163 L

Hydraulic Pressure : 40 - 60 kPa

After-sales Service : Field installation, commissioning and training

Contact Now

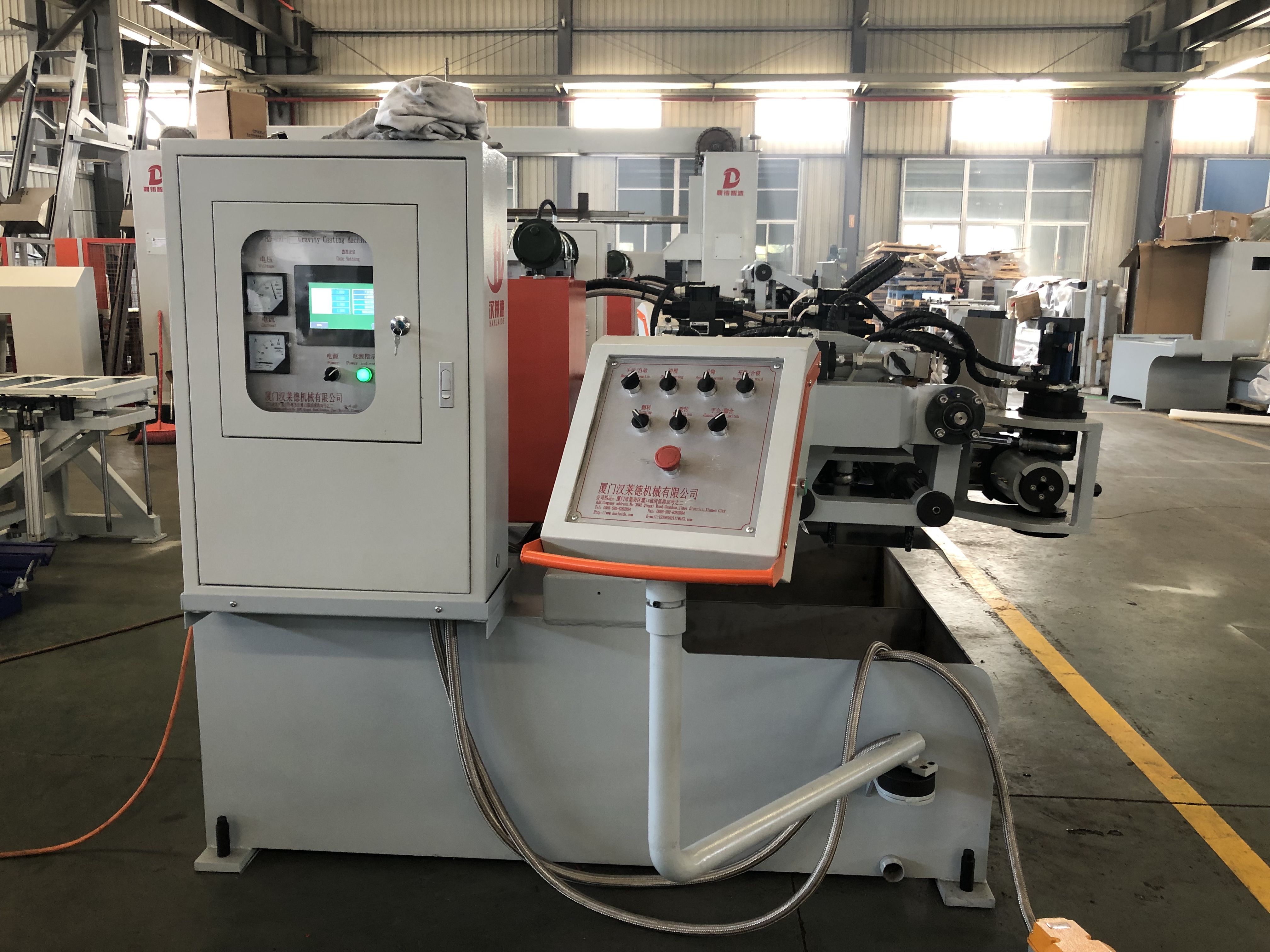

Aluminium Gravity Die Casting Machines Easy To Disassemble With CNC Machining

With the vigorous development and diversification of copper processing industry, the production technology of copper processing industry has been constantly updated and improved.In order to meet the production needs, our company specially designed hz-450 gravity die casting machine according to the principle of gravity casting.Suitable for brass gravity casting, simple operation, novel design and reasonable price.

Machine features:
1. The circuit is controlled by PLC, the data is set by touch screen, and all hydraulic components are imported.
2. it is suitable for gravity die casting of brass and ferroalloy.
3. Can be direct cast, side cast, double cast and mixed cast.
4. Cooling time of the mold can be adjusted separately.
5. Easy to disassemble, assemble and clean the mold.
6. With two functions of manual cycle and automatic cycle, the counter can be preset to record the output of each shift.
7. There is space to adjust the mold, convenient for different mold applications, reduce the requirements of mold size.
8. The machine can store die casting operation program and set the corresponding password.

Main Technical Specifications

#	Name	Specification
1	Max. Die size	Φ450mm
2	Max. Die working distance	450mm
3	Max. Die Weight	130kg
4	Max. Clamping distance	≦250mm
5	Hydraulic Motor	5Hp,6 degree
6	Hydraulic Pressure	4～6Kpa
7	Side Casting Angle	0°～90°
8	Direct Casting Angle	0°～110°
9	Stirring motor	0.75kw,6 degree ×2
10	Cooling tank	850kg
11	Hydraulic oil volume	163L
12	Machine Power	5.5kw
13	Machine Weight	1750kg
14	Dimension(LXWXH)	2250mm×2160mm×1560mm

Aluminium Gravity Die Casting Machines Easy To Disassemble With CNC Machining
Click the link to view video:
https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
